Easyfire Fire alarm system

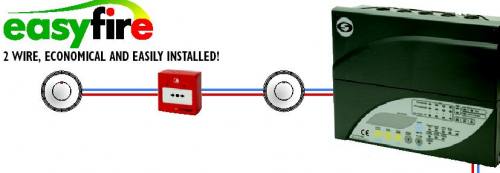

A conventional Fire-Detection system but so much more!  The detectors combine a sounder and operate on the same two conductors as the Easyfire Call Points, saving up to 40% of the final installed system costs.  These are no ordinary detectors either; each unit has a Motorola 8 bit processor on board, controlling the sounder and intelligently self calibrating signals from the high quality optical chamber and the heat detector element.  The detector can easily be set on site to one of 7 detection modes so instant changes can be made according to developments in the protected building.%

CONTRACTOR KITS - 2 Wire, suitable for BS5839 pt. 4 & pt. 6 (GradeA) EFP2/K Easyfire 2-zone starter kit includes: 1 x 2 zone panel c/w batteries, 6 x multipoint detectors c/w sounder, 2 x manual call points, 1 x detector head and/or sounder removal tool EFP4/K As above but with 4 zone.

CONTROL PANELS EFP2 Easyfire 2 zone control panel (requires 2 x Bat. 2.0 batteries) EFP4 Easyfire 4 zone control panel (requires 2 x Bat. 2.0 batteries) EFP8 Easyfire 8 zone control panel (requires 2 x Bat 7.0 batteries).

DETECTORS & SOUNDERS - 2 wire EFDS Easyfire multipoint detector with sounder EFDSNL Easyfire multipoint detector with Netherlands slow whoop sounder facility (not suitable for UK installations) EFD Easyfire multipoint detector without sounder EFSR Easyfire electronic sounder only (Red) maximum of 6 No. per zone EFSW Easyfire electronic sounder only (White) maximum of 6 No. per zone EFWPS Easyfire waterproof electric sounder only (red).

MANUAL BREAK GLASS POINTS - 2 wire EFBG Easyfire resettable manual break glass call point c/w back box and bezel for surface or flush fitting EFBGWP Easyfire resettable waterproof manual break glass call point c/w back bow for surface or flush fit EFBGSS Easyfire resettable manual break glass call point with integral alarm sounder c/w back box and bezel for surface or flush fitting.

ACCESSORIES - 2 wire EFRT Easyfire detector head and/or sounder removal tool EFOM Easyfire output module (requires separate PSU) EFOC Easyfire replacement optical chamber EPF8R Repeatable panel with 8 zone indications, 6 cores and 1 core per zone, powered from control panel EPF16R Repeatable panel with 16 zone indications, 6 cores and 1 core per zone, powered from control panel.
